Lime Handling System
Published£º2010-10-13¡¡¡¡Views£º1684 Times ¡¡¡¡Source£º Shaanxi Grandhorse Environmental Project Co., Ltd
Introduction
Lime Handling System
of GHEC mainly uses the Roots blower (or another style blower) to transport the limestone powder from the bin to the furnace constantly and evenly at the low positive pressure (not higher than 0.1MPa). Making the limestone and coal-fired mixed together completely to burning, and reducing the SO2 from the smoke. The system uses the low pressure to convey the limestone powder to furnace, making the limestone powder and coal-fired mixed completely, saving the limestone in the process of desulfurization. This is an idea system for limestone powder conveying, and also it can be used for the conveying of other powder material.

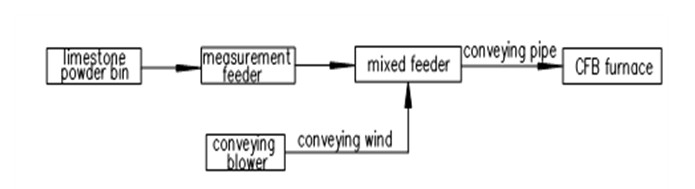

System Diagram
